Installing the ultrasonic sensor at the front left

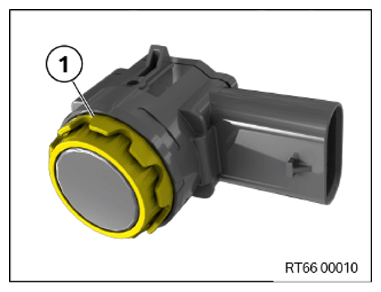

• Check decoupling ring (1) for damage.

  The decoupling ring (1) must not be missing.

  Courtesy of BMW OF NORTH AMERICA, INC.

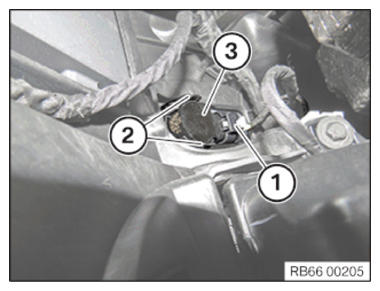

• Correctly position the ultrasonic sensor snap in the (3) detent (2).
• Connect connectors (1) and lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE FRONT BUMPER COVER .
• Refer to PARTIALLY INSTALLING THE TEMPERATURE SENSOR .
• Refer to INSTALLING FRONT WHEEL ARCH TRIM PANEL ON THE LEFT AND RIGHT (PARTIALLY REMOVED) .
• Refer to INSTALLING THE COVER FOR CENTRAL ENGINE COMPARTMENT .
• Refer to INSTALLING THE FRONT HOOD SEAL .
