Removing the battery pack of BMW display key

NOTE: RISK OF DAMAGE
Careless handling of tools and sharp-edged components.
Scratches, surface damage.

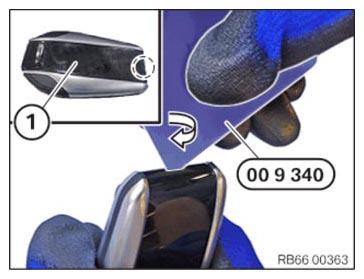

Open the lower housing trim (1) of the BMW display key at the marked points with special tool 0 493 687 (00 9 340) .

Courtesy of BMW OF NORTH AMERICA, INC.

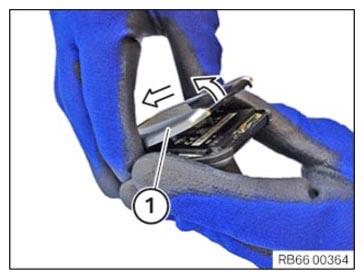

Carefully lift the lower housing trim (1) at a flat angle.
Disconnect the lower housing trim (1) from BMW display key (2) in arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.

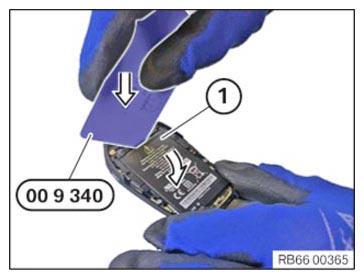

Lift the battery pack (1) carefully with the special tool 0 493 687 (00 9 340) .

Courtesy of BMW OF NORTH AMERICA, INC.

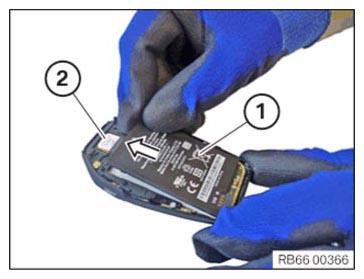

Remove the battery pack (1) from BMW display key (2) in arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.
