Replacing the emergency battery for the telematics control module

NOTE: RISK OF DAMAGE
Fold the headlining.
Damage to the headlining. If necessary, the headlining must be replaced.

Carry out tasks with a second person to assist.
Support the headlining at the front and back.

Preliminary work

Refer to TRIM OF THE 3RD BRAKE LIGHT .
Refer to PARTIALLY LOWERING THE HEADLINING .

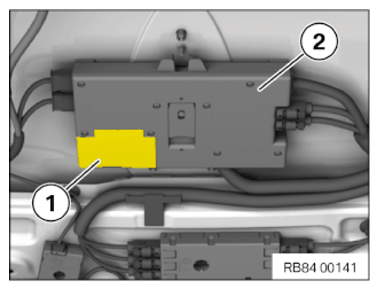

Unlock and open battery compartment (1) on telematic control unit (2).

Courtesy of BMW OF NORTH AMERICA, INC.

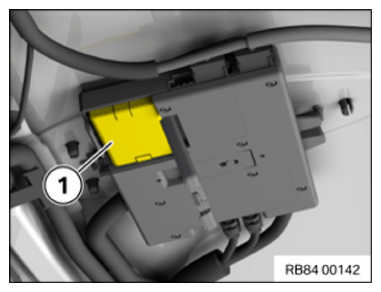

Feed the emergency battery (1) out of the battery compartment and replace it.
Parts: Emergency battery

Courtesy of BMW OF NORTH AMERICA, INC.
Shut battery compartment (1) on telematics control unit (2) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE HEADLINING (PARTIALLY LOWERED) .
Refer to INSTALLING 3RD BRAKE LIGHT TRIM .
