Removing the socket of the USB audio interface in the cup holder

Precondition

• Front storage compartment cover is open.

Preliminary work

• Refer to REMOVING CUP HOLDER .

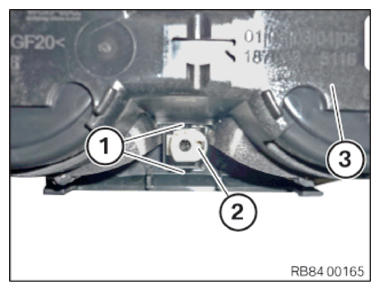

• Loosen the detents (1).
• Remove socket (2) from cup holder (3) to the front.

  Courtesy of BMW OF NORTH AMERICA, INC.
