Removing the USB port from the rear center console trim

NOTE: RISK OF DAMAGE
Damage of high-quality surfaces.
Plastic wedges can damage high-quality surfaces.

Protect surfaces from damage.

Preliminary work

Refer to REMOVING THE REAR CENTER CONSOLE TRIM .

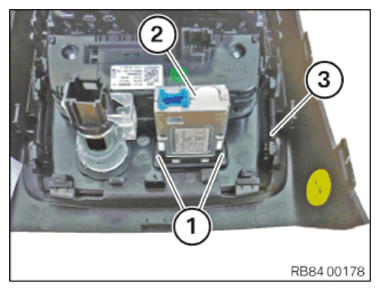

Loosen the detents (1).
Remove the USB port (2) from the center console trim (3).

Courtesy of BMW OF NORTH AMERICA, INC.
