34 52 Abs Control Module, Electronic Parking Brake Actuator, Stability Control System
>>
34 52 162 Removing and installing/replacing EMF actuator
>>
Detach EMF actuator
Detach EMF actuator
NOTE:
Description is for left component only. Procedure on the right side is identical.
Preliminary work
Refer to
PREPARING THE REMOVAL OF THE EMF ACTUATOR
.

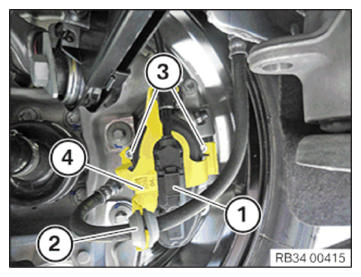

Disconnect plug connection (1).
Detach the brake hose (2) from the holder.
Release screws (3) and remove the holder (4).
Courtesy of BMW OF NORTH AMERICA, INC.

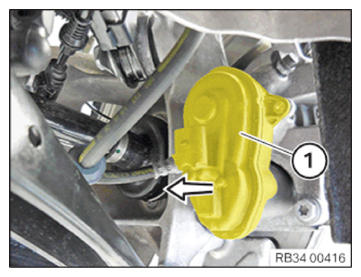

Remove the EMF actuator (1) in the direction of the arrow from the brake caliper.
Courtesy of BMW OF NORTH AMERICA, INC.
