Adjusting Left Front Door
Preliminary work
Follow-up work
NOTE:
TECHNICAL INFORMATION
The gap dimensions form the basis for these repair instructions and must be observed without fail.
For additional information see: 41 00... Gap dimensions for body
The gap dimensions form the basis for these repair instructions and must be observed without fail.
For additional information see: 41 00... Gap dimensions for body
NOTE:
Description is for left component only. Procedure on the right side is identical.
- Open the front door.

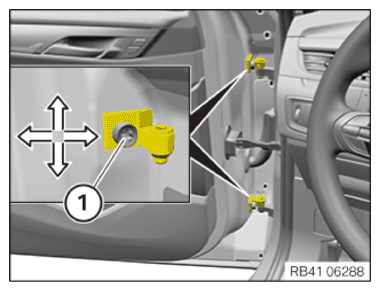

- Loosen the screws (1) until the door can be moved.
- Adjust the height (Z) of the door.
- Adjust the width (Y) of the door.
Check
Result

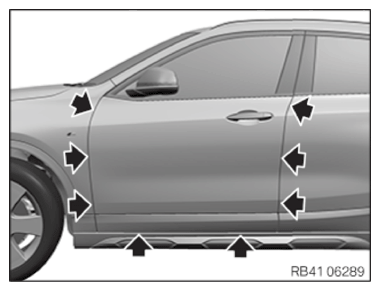

» Gap dimensions do not correspond to the specifications.
Measure
- Adjust door
- Tighten down screws (1).
TIGHTENING TORQUE SPECIFICATION
Front door to door hinge screw Tightening torque 40 Nm
Adjust lock striker
Precondition
The screws on lock striker are loosened so far that the lock striker can still be shifted.
NOTE:
TECHNICAL INFORMATION
The gap dimensions form the basis for these repair instructions and must be observed without fail.
For additional information see: 41 00... Gap dimensions for body
The gap dimensions form the basis for these repair instructions and must be observed without fail.
For additional information see: 41 00... Gap dimensions for body
- Adjust the height of the lock striker so that the door lock does not bump or drag.
- Move lock striker sideways in order to adjust the gap dimensions between door and rear quarter panel.
- Tighten down screws (1).
TIGHTENING TORQUE SPECIFICATION
Lock striker screw Tightening torque 21 Nm
Check
Result
» Gap dimensions do not correspond to the specifications.
Measure
- Adjust door
