Installing The Cargo Area Floor And Side Member On The Left

NOTE: TECHNICAL INFORMATION
For the repair, only use approved spot welders.
For additional information see: 41 00... Workshop equipment

NOTE: Perform the steps on the left and right side.

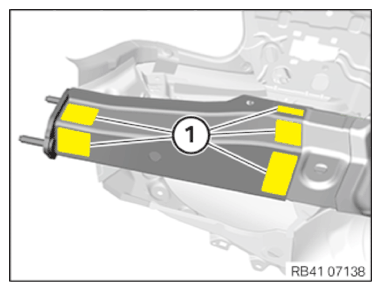

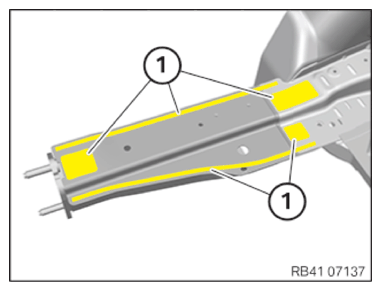

Weld the new parts in the area (1).

Courtesy of BMW OF NORTH AMERICA, INC.

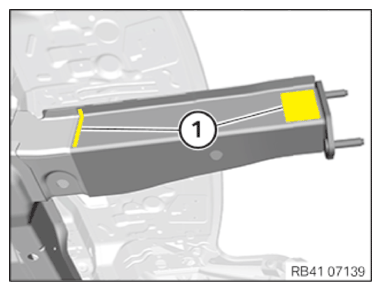

Weld the new parts in areas (1).

Courtesy of BMW OF NORTH AMERICA, INC.

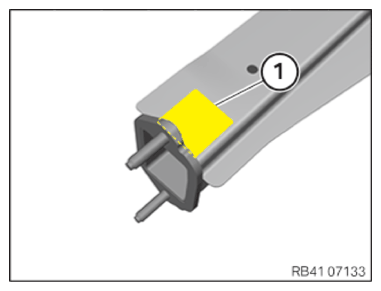

Weld the new parts in areas (1).

Courtesy of BMW OF NORTH AMERICA, INC.

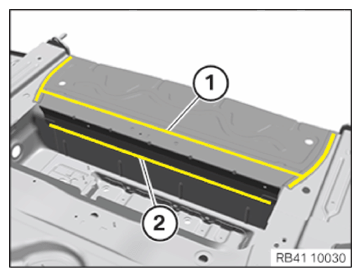

Weld the new parts in areas (1) and (2).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Perform the steps on the left and right side.

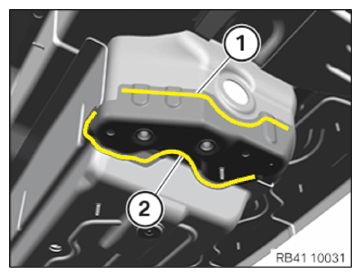

Weld the new parts in areas (1) and (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Install the left cargo area floor.

NOTE: TECHNICAL INFORMATION
When installing the new part, make sure that all bonding surfaces have sufficient adhesive.

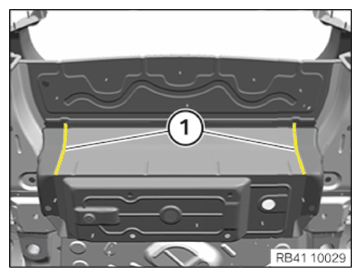

Fasten the new part in area (1) with blind rivets N3.

Courtesy of BMW OF NORTH AMERICA, INC.

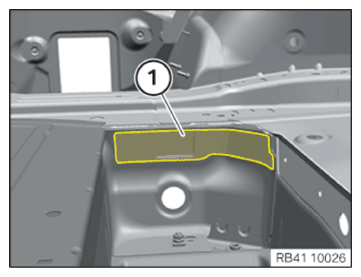

Install a blind rivet N3 in area (1).

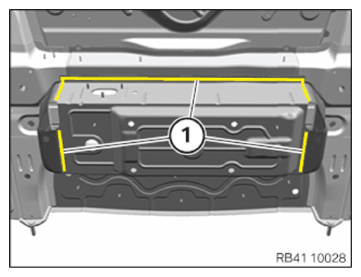

In the area (2), install 2 punch rivets N4.
CONSUMABLE SPECIFICATION

Punch rivet N4
Ø 3 mm; 4 mm long 83192457307

Courtesy of BMW OF NORTH AMERICA, INC.

Replacing the coarse thread bolt and threaded weld bolt (steel surface)

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

Renew the coarse thread bolt (1) and the threaded weld bolt (2).
Parts: Coarse thread bolt, threaded weld bolt

Take the number and position from the component to be replaced or the add-ons.
Weld coarse thread bolt (1) and threaded weld bolt (2) onto the new part.

Courtesy of BMW OF NORTH AMERICA, INC.

Check ground pins and replace if necessary

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

Check the ground pins (1) for stability and renew if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work
