Preparing New Part

NOTE: TECHNICAL INFORMATION
Adhesive technology in the area of the outer skin (not for structural adhesion):
The bonding surfaces of the new parts may not sharpened or ground.
For more information see: 41 00... BMW bonding instructions

Adjust new part in conjunction with tail panel and secure.

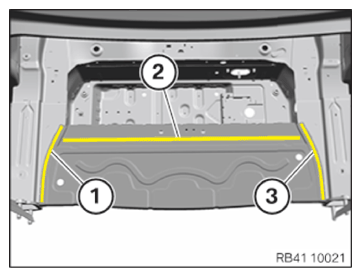

In areas (1) to (3), drill bores for Ø 4.2 mm for blind rivets.

When positioning the bores, make sure that no production spot-welds get drilled or drilled through!

Area	Number
1	4
2	9
3	4

Courtesy of BMW OF NORTH AMERICA, INC.

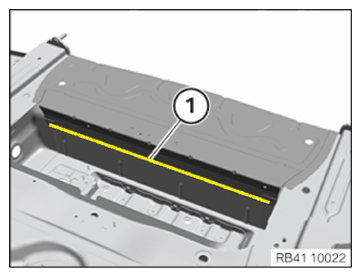

In area (1), drill 8 bores of Ø 4.2 mm for blind rivets.
Remove new part and deburr holes.

Courtesy of BMW OF NORTH AMERICA, INC.

Replacing the coarse thread bolt and threaded weld bolt (steel surface)

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

Renew the coarse thread bolt (1) and the threaded weld bolt (2).
Parts: Coarse thread bolt, threaded weld bolt

Take the number and position from the component to be replaced or the add-ons.
Weld coarse thread bolt (1) and threaded weld bolt (2) onto the new part.

Courtesy of BMW OF NORTH AMERICA, INC.
