Collision - Body Panel Repair (G42)
>>
41 12 Floor Panels
>>
41 12 654 Replacing The Right Luggage Compartment Floor (Rear Quarter Panel And Tail Panel Removed)
>>
Remove The Right Luggage Compartment Floor
Remove The Right Luggage Compartment Floor

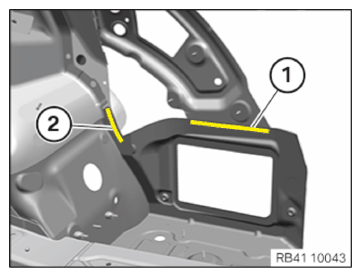

Make the separating cut (1) according to the schematic diagram.
Open welded connections in area (2).
Courtesy of BMW OF NORTH AMERICA, INC.
Release the welded connections in areas (1) and (2).
Courtesy of BMW OF NORTH AMERICA, INC.
Release the welded connections in the area (1) and remove the luggage compartment floor.
Courtesy of BMW OF NORTH AMERICA, INC.
