Preparing New Part

Mark the separating cut (1) on the new part according to the separating cut (2) on the vehicle + 20 mm added material and cut.

Courtesy of BMW OF NORTH AMERICA, INC.
Adjust new part to fit and secure.

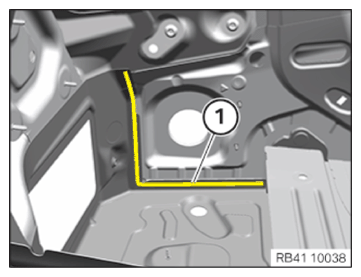

Prepare area (1) for joining by welding.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: To provide a better overview: Shown without side panel and without tail panel.

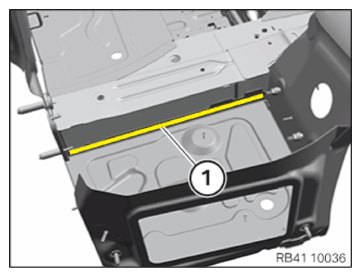

Prepare area (1) for joining by welding.

Courtesy of BMW OF NORTH AMERICA, INC.

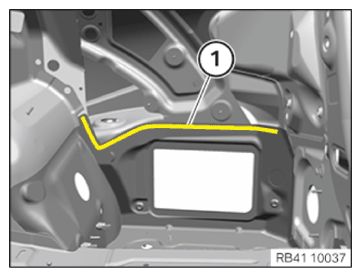

Prepare area (1) for joining by welding.

Courtesy of BMW OF NORTH AMERICA, INC.

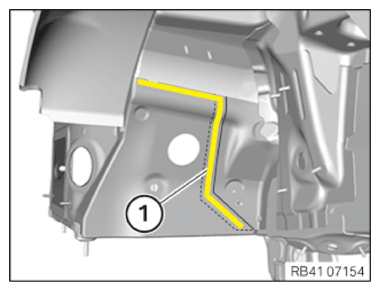

Prepare area (1) for joining by welding.

Courtesy of BMW OF NORTH AMERICA, INC.

Replacing the coarse thread bolt and threaded weld bolt (steel surface)

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

Renew the coarse thread bolt (1) and the threaded weld bolt (2).
Parts: Coarse thread bolt, threaded weld bolt

Take the number and position from the component to be replaced or the add-ons.
Weld coarse thread bolt (1) and threaded weld bolt (2) onto the new part.

Courtesy of BMW OF NORTH AMERICA, INC.

Check ground pins and replace if necessary

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

Check the ground pins (1) for stability and renew if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.
