Preparing New Part

Perform the separating cuts on the new part according to the separating cuts on the vehicle.

NOTE: TECHNICAL INFORMATION
For additional information see: 41 00... Welding in reinforcement plates (sheet steel)

Prepare the reinforcement plates on the separating cuts.

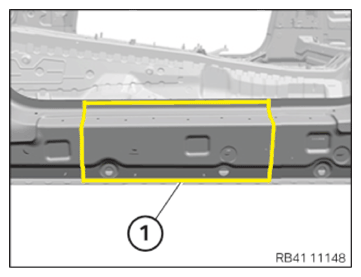

Adjust reinforcement plates and new part to fit. Prepare area (1) for joining by welding

Courtesy of BMW OF NORTH AMERICA, INC.
