Remove Carrier Support

NOTE: TECHNICAL INFORMATION
For additional information see: 41 00... Releasing bonded connections

Heat and release the bonded connection in area (1).
Do not damage the aluminum engine mount (2) in the process!

Courtesy of BMW OF NORTH AMERICA, INC.
Perform the separating cut (1) as shown. Thereby disconnect only the outer panel.
Release the welded connections in areas (2) and (3).
Heat and release the bonded connection in area (1). Do not damage the aluminum spring support in the process!
Remove the section of the carrier support.

Courtesy of BMW OF NORTH AMERICA, INC.

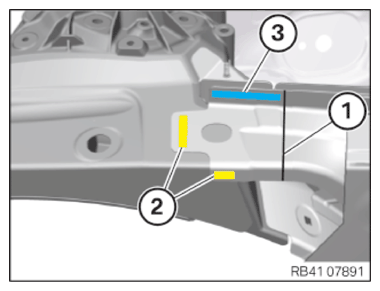

Perform the separating cut (1) as shown. Thereby disconnect only the outer panel.
Release the welded connections in areas (2) and (3).
Heat and release the bonded connection in area (3). Do not damage the aluminum spring support in the process!
Remove the section of the bulkhead.

Courtesy of BMW OF NORTH AMERICA, INC.

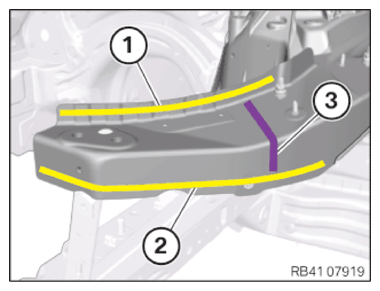

Open welded connections in areas (1) and (2).
Release carrier support from the cavity sealing (3).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
For additional information see: Open riveted joints (41 00).

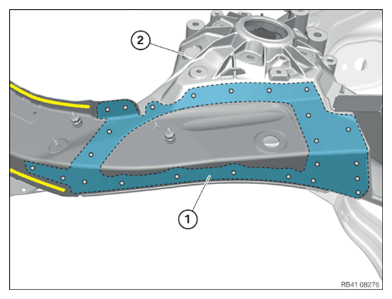

Release the rivet connectors in area (1).
Heat and release the bonded connection in area (1). Do not damage the aluminum spring support in the process!
Remove the carrier support.

Courtesy of BMW OF NORTH AMERICA, INC.
