Installing the LIN power distribution box

WARNING: Work on components with requirements for a secure energy supply
Ensure proper function after a repair

Lines are allowed to have only one repair area.
Notices in the diagnostic system circuit diagrams must be observed.
When components are replaced, the notices in the applicable BMW parts catalogue must be observed.

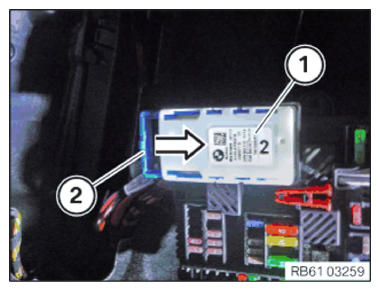

Position the LIN power distribution box (1) correctly and shift the locking device (2) in arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.

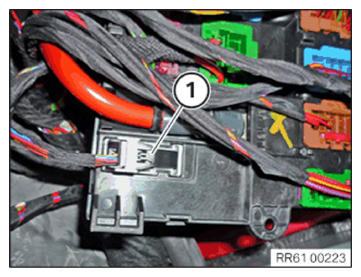

Connect connectors (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

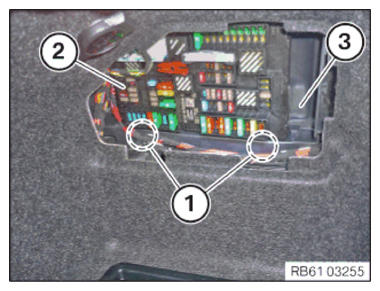

Position the power distribution (2) correctly and engage it into the holder (3).

Detents (1) must engage correctly.

G14644917

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE FLAP IN THE LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON THE RIGHT .
Refer to ACTIVATING ELECTRICAL SYSTEM .
