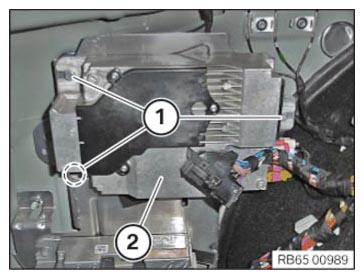

Installing the Receiver Audio Module (RAM)

• Install and position the Receiver Audio Module (RAM) (2).
• Tighten nuts (1).
  TIGHTENING TORQUES SPECIFICATION



  Amplifier/RAM to holder
  M 5 screw	Tightening torque	3 Nm
  Nut	Tightening torque	3 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

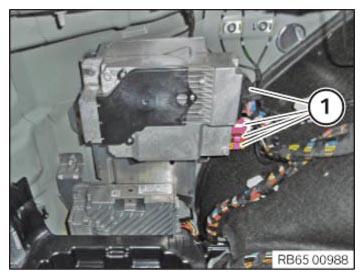

• Connect connectors (1) and lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL .
• Refer to INSTALLING LOADING EDGE TRIM .
• Refer to INSTALLING LUGGAGE COMPARTMENT FLOOR COVERING .
• Refer to ACTIVATING ELECTRICAL SYSTEM .
• Refer to ENCODING/PROGRAMING CONTROL UNIT(S) .
