Remove the front folding compartment LED module

Preliminary work

• Refer to REMOVING FRONT DOOR TRIM PANEL .
• Refer to REMOVING THE SOUND INSULATION ON THE FRONT DOOR TRIM PANEL .

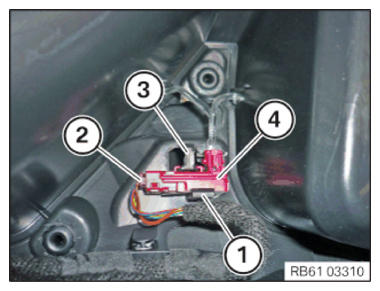

• Unlock plug connection (2) and disconnect.
• Release detent (1).
• Remove the LED module (4) with the fiber-optic conductor from the holder (3).
