Installing the front camera

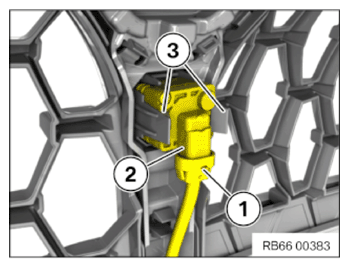

• Insert the front camera (2)  and clip into the detents (3)  .
• Connect connectors (1)  and lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE FRONT BUMPER COVER .
• Refer to PARTIALLY INSTALLING THE TEMPERATURE SENSOR .
• Refer to INSTALLING FRONT WHEEL ARCH TRIM PANEL ON THE LEFT AND RIGHT (PARTIALLY REMOVED) .
• Refer to INSTALLING THE COVER FOR CENTRAL ENGINE COMPARTMENT .
• Refer to INSTALLING THE FRONT HOOD SEAL .
• Refer to ENCODING/PROGRAMING CONTROL UNIT(S) .
