Install KAFAS camera (Mid variant)
NOTE:
TECHNICAL INFORMATION
Detents, guides and mounting elements must not be damaged or missing.
Detents, guides and mounting elements must not be damaged or missing.

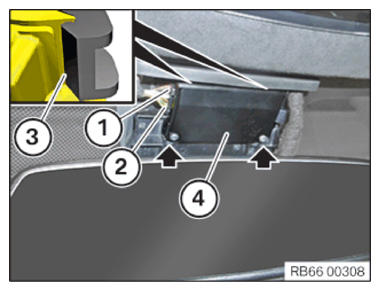

- Feed in KAFAS camera (4) on the guides (arrows) and engage the retaining lugs (3) .
- Make sure that the KAFAS camera (4) engages correctly in the snap-in lugs (3) .
- Connect connectors (2) and lock.
- Connect connectors (1)
and lock.
Follow-up work
- Refer to INSTALLING THE COVERS FOR THE INTERIOR MIRRORS .
- Refer to ENCODING/PROGRAMING CONTROL UNIT(S) .
