Remove the LTE compensator

Preliminary work

• Refer to REMOVING REAR SEAT BENCH .

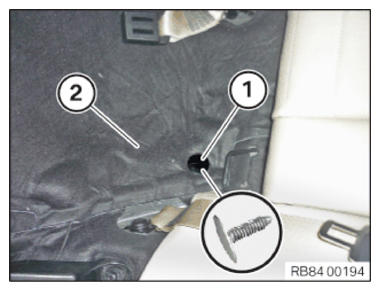

• Release clip (1) and fold up the sound insulation (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

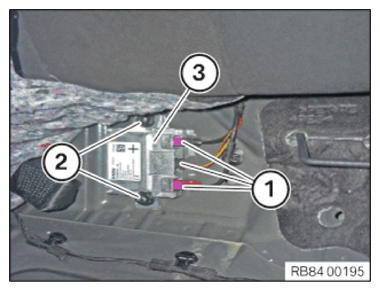

• Unlock plug connection (1) and disconnect.
• Loosen nuts (2).
• Remove the LTE compensator (3).

  Courtesy of BMW OF NORTH AMERICA, INC.
