Installing the center console trim

NOTE: RISK OF DAMAGE
Careless handling of tools and sharp-edged components.
Scratches, surface damage.

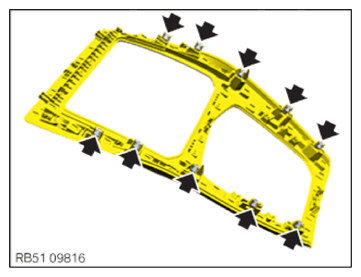

Check the clamps (arrows) for damage and replace if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.
Protect the gearshift lever against scratches.
Guide in center console trim (1) on the gearshift lever.
Connect respective connectors and lock.
Feed in the center console trim (1) in front and clip it in at the clamps (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installing the center console trim
NOTE:
RISK OF DAMAGE
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
- Protect working area.
- Handle tools and components carefully.
Check the clamps (arrows) for damage and replace if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.
Attach the center console trim (1) at the front and engage at the clamps (2).

Courtesy of BMW OF NORTH AMERICA, INC.
