Installing the instrument cluster (KOMBI)

NOTE: RISK OF DAMAGE
Damage to the instrument cluster (KOMBI) or the head unit
A ground offset can occur when releasing and connecting the cables. This can generate currents that render the instrument cluster (KOMBI) or the head unit unusable.

When releasing: First release the APIX data cable (blue).
When connecting: Connect the APIX data cable (blue) last.

Courtesy of BMW OF NORTH AMERICA, INC.

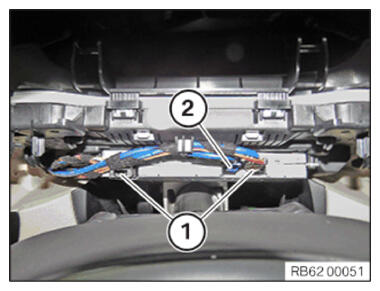

Connect connector (1) with the instrument cluster (KOMBI).
Connect blue connector (2) with the instrument cluster (KOMBI).
Guide in the instrument cluster (COMBI) (1) in the direction of the arrow.

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screws (1) .

TIGHTENING TORQUE SPECIFICATION

Instrument cluster (KOMBI) to support
Oval-head screw	Tightening torque	1.8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Clip in the trim (1) in the marked area.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE DECORATIVE STRIP ON THE DASHBOARD ON THE LEFT .
Refer to INSTALLING DECORATIVE STRIP ON CENTER OF DASHBOARD .
Refer to ACTIVATING VEHICLE ELECTRICAL SYSTEM .
