Install right glove compartment
TIGHTENING TORQUES SPECIFICATION
| Glove compartment to dashboard | ||
|---|---|---|
| screw | Tightening torque | 1.8 Nm |

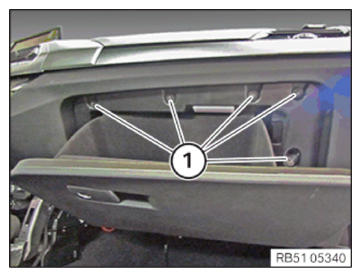

- Tighten the screws (1) .
TIGHTENING TORQUES SPECIFICATION
| Glove compartment to dashboard | ||
|---|---|---|
| screw | Tightening torque | 1.8 Nm |
Follow-up work
- Refer to INSTALLING RIGHT FOOTWELL TRIM .
