Remove brake pad wear sensor to the front
Preliminary work
- Refer to REMOVING THE FRONT LEFT WHEEL .
NOTE:
TECHNICAL INFORMATION
The brake pad wear sensor must be replaced immediately once it has been removed because the brake pad wear sensor loses its retention capacity in its brake pad.
If a brake pad wear sensor that has already been ground has to be replaced even though the minimum brake pad thickness has not yet been reached, you must observe the following:
The new sliding contact must be filed down with a file to the same length as the sanded sliding contact.
The brake pad wear sensor must be replaced immediately once it has been removed because the brake pad wear sensor loses its retention capacity in its brake pad.
If a brake pad wear sensor that has already been ground has to be replaced even though the minimum brake pad thickness has not yet been reached, you must observe the following:
The new sliding contact must be filed down with a file to the same length as the sanded sliding contact.

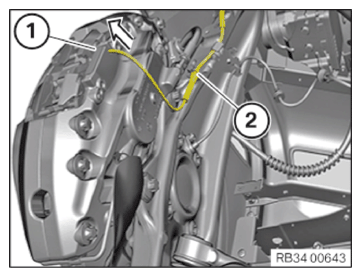

- Remove the brake pad wear sensor (1) from the brake pad in the direction of arrow.
- Detach the cable of the brake pad wear sensor (1) from the holder (2) .

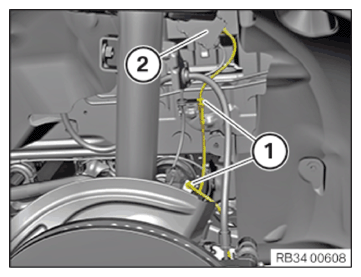

- Detach the brake pad wear sensor from the holders (1) .
- Open the sealing cap (2) and unlock and disconnect the plug connection.
