Installing the front brake pad wear sensor

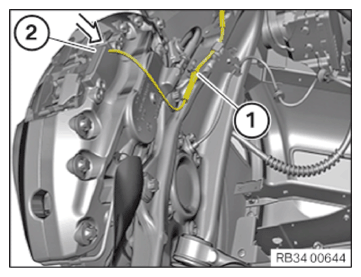

• Hook the cable of the brake pad wear sensor (2)  to the holder (1)  .
• Install the brake pad wear sensor (2)  in the direction of arrow in the brake pad and ensure its correct fit.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Hook the cable of the brake pad wear sensor to the holders (1)  .
• Connect connectors and lock.
• Close sealing cap (2)  .

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to ATTACHING THE FRONT LEFT WHEEL .
