Installing rear wheel speed sensor
- Clean the bore for the wheel speed sensor and grease it with lubricating grease (see applicable BMW parts catalogue).
CONSUMABLE SPECIFICATION
| Lubricating grease Staburags NBU 12K |
100 g, Tube | 83 23 9 407 810 |
- Install rear wheel speed sensor.

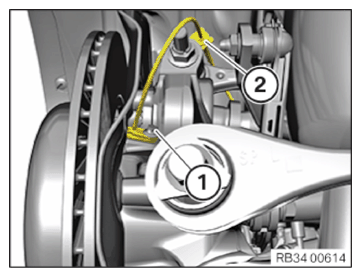

- Replace the screw (2)
.
Parts: Screw
- Position and tighten the screw (2) .
TIGHTENING TORQUES SPECIFICATION
| Rear wheel speed sensor on wheel carrier | ||
|---|---|---|
| Replace screw. | tightening torque | 12 Nm |

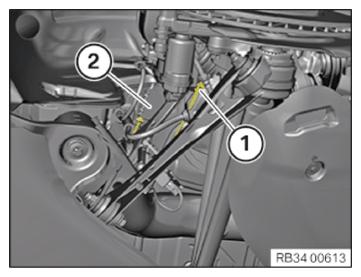

- Hook cable of the wheel speed sensor into the holder (1) .
- Hook the cable of the wheel speed sensor into the holder (1) .
- Connect the connector and close cover (2) .
Follow-up work
- Refer to INSTALLING THE REAR LEFT WHEEL .
