Installing the front wheel speed sensor
- Clean bore for wheel RPM sensor and grease using lubricating grease (see applicable BMW parts catalogue).
CONSUMABLE SPECIFICATION
| Lubricating grease Staburags NBU 12K |
100 g, Tube | 83 23 9 407 810 |

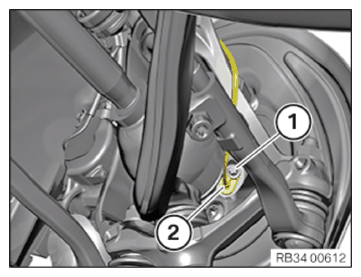

- Install rear wheel speed sensor (2) .
- Position and tighten the screw (1) .
TIGHTENING TORQUES SPECIFICATION
| Front wheel speed sensor on swivel bearing | ||
|---|---|---|
| Screw Replace screw. |
Tightening torque | 12 Nm |

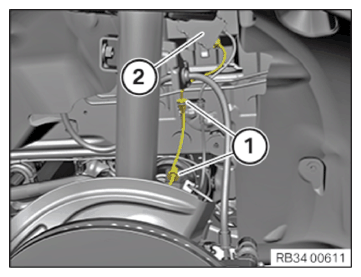

- Connect the cable of the wheel RPM sensor in the holders (1) .
- Connect the cable of the wheel RPM sensor in the holders (1) .
- Connect connector and close the housing cover (2) .
Follow-up work
- Refer to ATTACHING THE FRONT LEFT WHEEL .
