Installing starter motor
- Insert and install the starter motor (2).
- Tighten down screws (1).
TIGHTENING TORQUES SPECIFICATION
| Starter motor to crankcase | ||
|---|---|---|
| M8x60 | Tightening torque | 19 Nm |

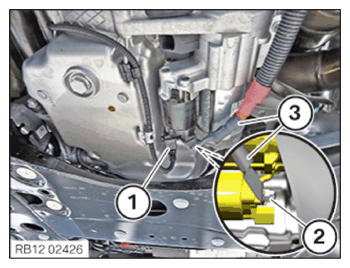

- Insert the positive battery cable (3) and install it.
- Tighten the nut (2) hand-tight.
- Connect connectors (1) and lock.
The connector (1) must engage audibly.
CAUTION:
Improper routing of the positive battery cable.
Risk of short circuits!
Risk of short circuits!
- Route the positive battery cable without abrasions and do not trap.
NOTE:
Schematic diagram is for example purposes. Some parts may differ in certain details.
- Attach the positive battery cable (1) correctly to anti-twist lock (2).
- Tighten nut (3).
TIGHTENING TORQUES SPECIFICATION
| Battery positive lead to starter | ||
|---|---|---|
| M8 | Tightening torque | 13.4 Nm |
Follow-up work
