Installing the clean air pipe for cylinders 1-3
NOTE:
TECHNICAL INFORMATION
Use of sharp or pointy tools for installation or removal is prohibited.
Use of sharp or pointy tools for installation or removal is prohibited.
- Remove damaged seal.

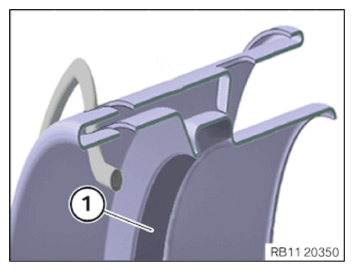

- Clean the gasket groove (1) with a dry cloth.
The gasket groove (1) must be clean.
- Replace gasket.
Parts: Seal
Parts: Seal

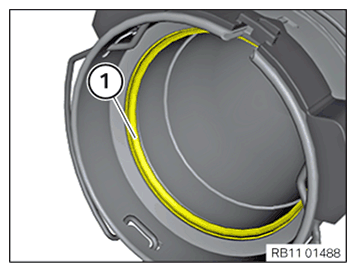

- Install the seal dry without lubricant or mounting agent.
NOTE:
TECHNICAL INFORMATION
Incorrect assembly is possible. Ensure correct installation position.
Incorrect assembly is possible. Ensure correct installation position.
- Thread in seal and install.

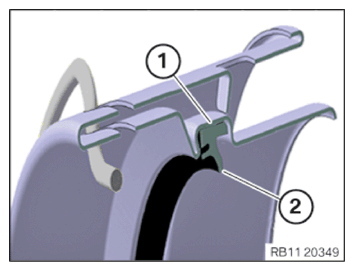

- Make sure that the seal is installed correctly in the gasket groove (1).
- Make sure that the sealing lip (2) is directed to the inside as shown.

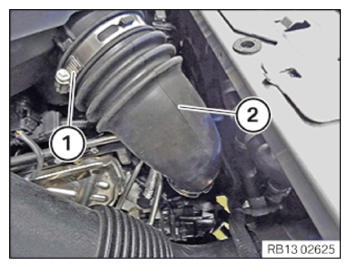

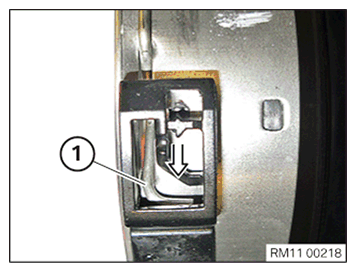

- Detach locks (1) from the holders in the arrow direction.
- Guide in and install the clean air pipe of cylinders 1-3 (2).

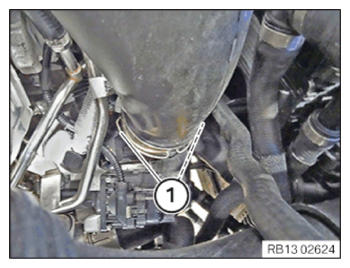

- Tighten clamp (1).
TIGHTENING TORQUES SPECIFICATION
| Air line to intake filter housing | ||
|---|---|---|
| cl. | tightening torque | 3 Nm |
- Make sure that the clamp (1) locks audibly.

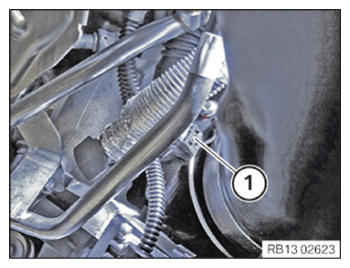

- Connect and lock the connector (1) of the connecting bracket.
The connector (1) must engage audibly.
Follow-up work
- Refer to INSTALLING THE RIGHT FRONT-END STRUT .
