Install the loudspeaker on the rear door

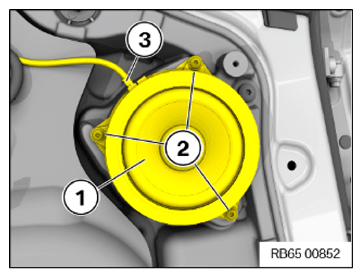

- Position the loudspeaker (1) and tighten the screws (2).TIGHTENING TORQUE SPECIFICATIONS
Door loudspeaker screw Tightening torque 2.5 Nm - Connect connector (3).
Follow-up work
- Refer to INSTALLING REAR DOOR TRIM .
