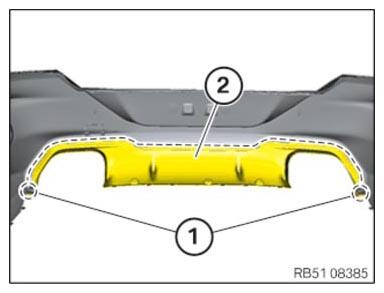

Installing the rear bumper trim (partially removed)

• Check if all detents of the rear bumper trim (2) are available and are damaged, if necessary replace the rear bumper trim (2).
• Clip in the rear bumper trim (2) along the dotted line at the detents.
• Tighten the screws (1).

TIGHTENING TORQUE SPECIFICATION

Bumper trim, rear
Hexagon screw	tightening torque	2.6 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
