Installing the fuel filler pipe

• Position the fuel filler pipe (3).
• Replace nut (2).

  Parts:  Nut

• Fit nut (2) and tighten.
• Position and lock snap fasteners (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Replace nuts (1).

  Parts:  Nuts

• Install the nuts (1) and tighten.

  Courtesy of BMW OF NORTH AMERICA, INC.

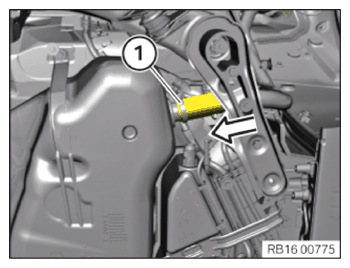

• Mount filling hose on the fuel tank in the arrow direction.
• Replace the hose clamp (1).

  Parts:  Hose clamp

• Position hose clamp (1) and tighten.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Close sealing cap (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING TANK COVER .
• Refer to REMOVING REAR WHEEL ARCH COVER .
• Refer to MOUNTING THE REAR RIGHT WHEEL .
• Refer to FILLING FUEL TANK .
