Install Outer Tail Panel Section

NOTE: Perform the steps on the left and right side.

Pre-clean bonding surfaces on vehicle and on new part with cleaning agent R2.
CONSUMABLE SPECIFICATION

Cleaning agent R2 500 ml 83190417324
Clean bonding surfaces on vehicle and on new part with cleaning agent R1.
CONSUMABLE SPECIFICATION

Cleaning agent R1 100 ml, Bottle 83192211217
Apply adhesive K5 to the bonding surfaces.
ADHESIVE SPECIFICATION

Body adhesive K5 195 ml 83195A59935
Install new part.

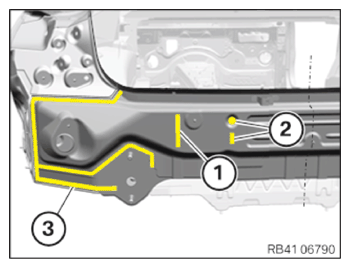

Rivet new part in the areas (1) to (3) with blind rivets N3.
CONSUMABLE SPECIFICATION

Blind rivet N3
Ø 4 mm; clamping area 1-3 mm 83190301421

Courtesy of BMW OF NORTH AMERICA, INC.

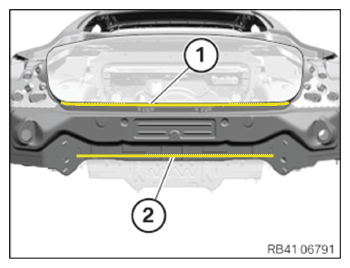

Rivet the tail cowling in the areas (1) and (2) with punch rivets N4 and N5.

Area	Number	Punch rivet
1	16	N4
2	11	N5

CONSUMABLE SPECIFICATION

Punch rivet N4
Ø 3 mm; 4 mm long

83192457307

Courtesy of BMW OF NORTH AMERICA, INC.

CONSUMABLE SPECIFICATION

Punch rivet N5
Ø 5 mm; 5 mm long

83192158079

Installing the EMC screw

Drill a hole with a diameter of 4.2 mm.
In the case of glued connections, only drill the hole after the adhesive has fully hardened.
Screw in the EMC screw.
CONSUMABLE SPECIFICATION

EMC screw SF Plus M5x15 83190301639
Seal the EMC screw with the sealant.

CONSUMABLE SPECIFICATION

Sealant D1 (seam sealing)

310 ml

83425A547B4

NOTE: TECHNICAL INFORMATION
Prevent emerging adhesive from coming into contact with support for the bumper cover. Do not use any cleaning agents containing solvents.

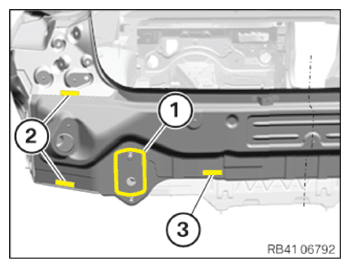

Press in the tail cowling in area (1) and remove the emerging adhesive.
Attach the support for bumper cover.
After the adhesive has hardened install 3 EMC screws in the areas (2) (3) .

Courtesy of BMW OF NORTH AMERICA, INC.

CONSUMABLE SPECIFICATION

Screw
EMC screw, SF Plus, M5x15

83190301639Consumable
