Collision - Body Panel Repair (2 Of 2) (F91, F92 & F93)
>>
41 21 Side Frames And Pillars
>>
41 21 940 C-Pillar Partial Replacement Additional Work (M8 Convertible 2020-2024)
>>
Preparing New Part
Preparing New Part

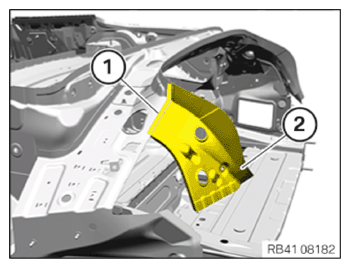

Remove superfluous components from new part.
Adjust the new part (2) together with the tail panel and the side panel.
Prepare area (1) for joining by welding.
Courtesy of BMW OF NORTH AMERICA, INC.
