Removing tail light on tailgate at left and right

Preliminary work

• Refer to REMOVING TRUNK COMPARTMENT LIGHT ON TRUNK LID .
• Refer to REMOVING THE POWER TAILGATE SWITCH .
• Refer to REMOVING TAILGATE TRIM PANEL .
• Refer to REMOVING THE WATER SUPPLY AT THE TAIL LIGHT ON THE LEFT AND RIGHT .

Removing the tail light on the trunk lid

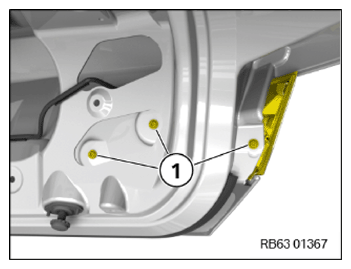

• Loosen screws (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

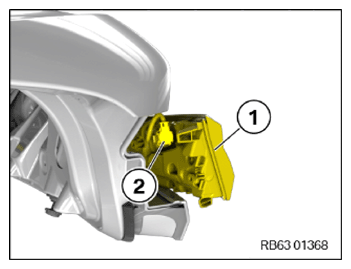

• Feed tail light out at trunk lid (1).
• Unlock the plug connection (2) and disconnect it and remove the tail light on the tailgate (1).

Courtesy of BMW OF NORTH AMERICA, INC.
