Measuring the ride height of the rear axle and setting the normal position

Set the vehicle on the wheels (e.g. workshop pit or vehicle lift for Kinematics Diagnosis System).

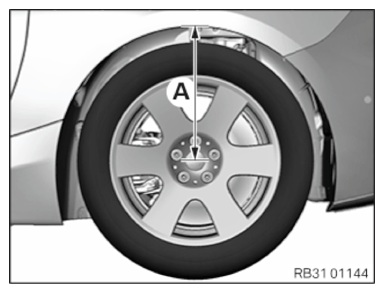

Measure the ride height (A) .

Load or unload the vehicle until the ride height (A) is within the tolerance.

TECHNICAL DATA SPECIFICATION

G82/G83 Rear-wheel drive/all-wheel drive, standard suspension
Measured from center of wheel hub to lower edge of wheel arch	Dimension A	378 ⁺¹⁰_-10 mm
