Tightening the screw connection of the lower front control arm to the wheel carrier

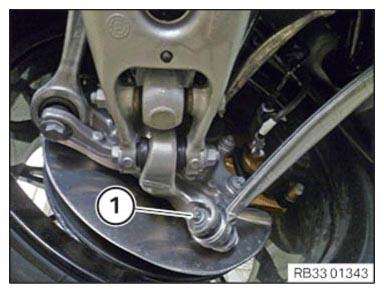

- Slacken screw (1) by a turn and tighten it.
TIGHTENING TORQUE SPECIFICATIONS
| Front lower wishbone to wheel carrier | ||
| M12 Replace screw. Tighten in NORMAL POSITION . |
Tightening torque | 100 Nm |
