Removing The Outer Section Of The A-Pillar

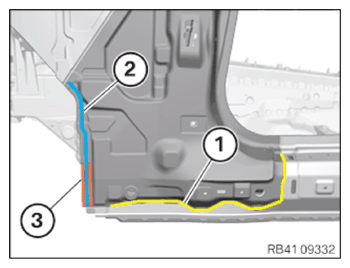

- Open welded connections in area (1).NOTE: TECHNICAL INFORMATION
For additional information see: 41 00... Releasing bonded connectionsNOTE: RISK OF DAMAGE
Damage to bonded connection .
Influence of heat that is too large leads to damage on bonded connections lying on the beading or below .- Warm bonded connection only for a short time, maximum up to 120°C.
- Release the spot-welded adhesive joints in area (2).
Do not damage the bonded connection in area (3) between the panels located underneath!
- Open spot-welded adhesive joints in areas (1).
- Open brazed connection in the area (2).
- Release bonded connection in area (3).
- Release and remove the A-pillar outer section from the cavity sealing (6).
