Preparing New Parts
- Fit in new part.NOTE: TECHNICAL INFORMATION

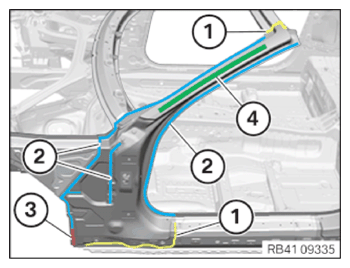

For additional information see: 41 00... Spot-weld bonding steel components - Prepare areas (1) to (3) for joining by welding.
Observe the replacement procedure for standard production spot-welded adhesive joints in areas (2).
- In area (3), note the bonded connections between the underlying panels!
As far as possible, prepare area (3) in such a way that the repair spot-welds can be set on the production spot-welds.
NOTE: TECHNICAL INFORMATION
Structural adhesive bonding .
Observe preparation of bonding surfaces.
For additional information see: 41 00... BMW bonding instructions - Prepare area (4) for steel on steel structural bonding.
Replacing the coarse thread bolt and threaded weld bolts (steel surface)

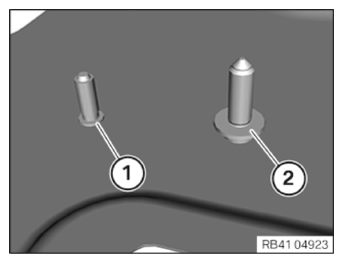

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details. - Renew the coarse thread bolt (1) and the threaded weld bolt (2).
Parts : Coarse thread bolt, threaded weld bolt
Take the number and position from the component to be replaced or the add-ons.
- Weld the coarse thread bolt (1) and threaded weld bolt (2) onto the new part.
