Preparing New Part
- Mark severance cuts on new part in accordance with severance cuts on vehicle and cut.NOTE: TECHNICAL INFORMATION
For additional information see: 41 00... Welding in reinforcement plates (sheet steel) - Prepare reinforcement plates at severance cuts.
- Fit in new part.NOTE: TECHNICAL INFORMATION

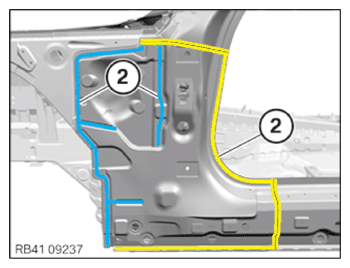

For additional information see: 41 00... Spot-weld bonding steel components - Prepare the new part in areas (1) and (2) for joining by welding.
In area (2), observe the procedure for the replacement of spot-welded adhesive joints for the standard production.
Replacing the coarse thread bolt and threaded weld bolts (steel surface)

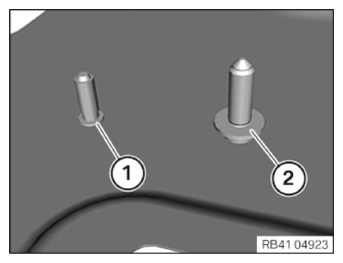

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details. - Renew the coarse thread bolt (1) and the threaded weld bolt (2).
Parts : Coarse thread bolt, threaded weld bolt Take the number and position from the component to be replaced or the add-ons.
- Weld the coarse thread bolt (1) and threaded weld bolt (2) onto the new part.
