Installing front brake pads
- Insert and position the brake pads in the brake caliper
- Mount the brake caliper (1) in the arrow direction
- Replace nuts (1)
Parts: Nuts
- Put on the nuts (1) and tighten
TIGHTENING TORQUE SPECIFICATION
| Brake caliper on stud bolt of the front swivel bearing | ||
| M12 Replace nuts |
Tightening torque | 95 Nm |

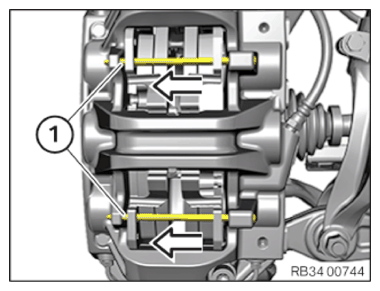

- Push the locking pins (1) in the arrow direction up to the stop
If necessary, press the brake pads against the spring force of the retaining spring
