If installed: Remounting the driver camera system (DCS)
Removing the driver camera system (DCS)

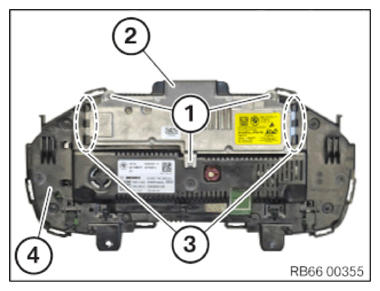

- Release the screws (1) on the Driver Camera System (DCS) (2)
- Feed out and remove the Driver Camera System (DCS) (2)
upwards at the guides (3)
of the instrument cluster (4)
Installing the driver camera system (DCS)
- Feed the Driver Camera System (DCS) (2) into the guides (3) of the instrument cluster (4) from the top
- Tighten the screws (1)
on the Driver Camera System (DCS) (2)
