Remove rear side window glass

Preliminary work

• Refer to REMOVING REAR DOOR TRIM .
• Refer to REMOVING THE COVER ON THE INSIDE OF THE WINDOW FRAME AT THE REAR .
• Refer to REMOVING THE WINDOW CHANNEL STRIP FROM INNER REAR DOOR .
• Refer to REMOVING THE WINDOW CHANNEL STRIP FROM THE REAR DOOR .
• Refer to REMOVING THE WINDOW GUIDE BAR TRIM .

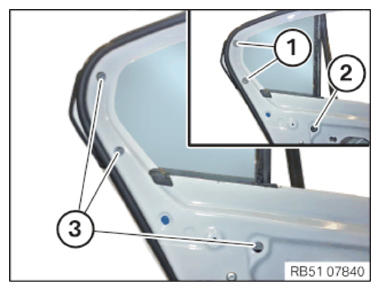

• Remove the label (1)
• Remove the cover (2)
• Loosen screws (3)

  Courtesy of BMW OF NORTH AMERICA, INC.

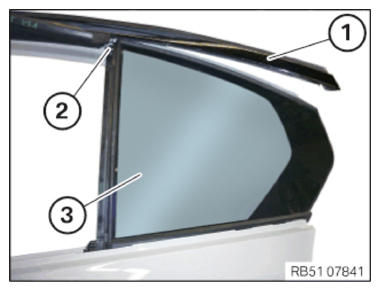

• Pull the window guide rubber (1) off of the doorframe as shown in the area of side window glass (3)
• Loosen screw (2)
• Unclip side window glass (3) out of door at the top
• Guide the side window glass (3) out of the door in an upward direction

  Courtesy of BMW OF NORTH AMERICA, INC.
