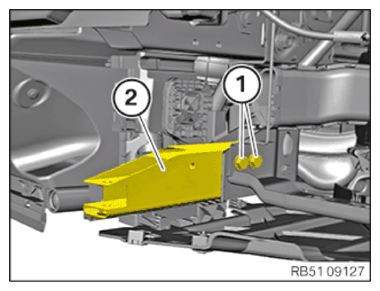

Removing bottom deformation element
NOTE:
RISK OF DAMAGE
Mechanical effects
Paint damage
Mechanical effects
Paint damage
- Mask those working areas at risk with yellow plastic adhesive tape
- Remove and install heavy or bulky components with the aid of another person/other persons
NOTE:
In order to guarantee the quality of the Driver Assistance functions in vehicles with concealed radar sensors, please read and comply with the following notes:
Preliminary work
- Refer to REMOVING THE FRONT SPOILER .
- Refer to REMOVING THE FRONT UNDERBODY PROTECTION .
- Refer to REMOVING SEAL FOR FRONT HOOD .
- Refer to REMOVING THE COVER FOR THE CENTER ENGINE COMPARTMENT .
- Refer to REMOVING THE FRONT SECTION OF THE FRONT WHEEL ARCH COVER ON THE LEFT AND RIGHT .
- Refer to PARTIALLY REMOVING TEMPERATURE SENSOR .
- Refer to REMOVING FRONT BUMPER COVER .
- Refer to RELEASING THE LEFT AND RIGHT EXTERNAL RADIATOR .
- Refer to REMOVING THE LEFT AND RIGHT AIR DUCT .
- Refer to REMOVING LEFT AND RIGHT BRAKE VENTILATION DUCT .
- Refer to REMOVING SUPPORT FOR BUMPER COVER AT FRONT BOTTOM .
