Replacement: Remounting the components on the support

NOTE: Perform the steps on the right and left side

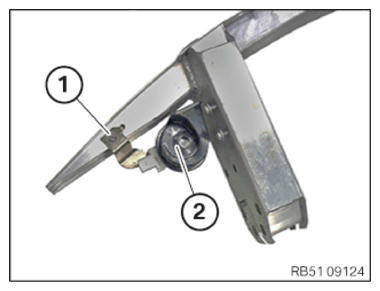

Tighten down screw (1)

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUES SPECIFICATION

Fanfare horn to support for bumper cover
M6x20 screw	Tightening torque	8.8 Nm

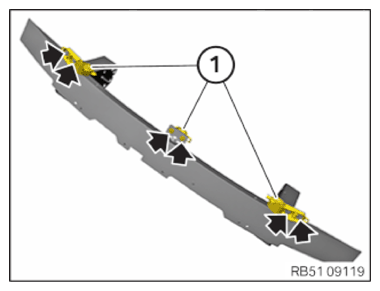

Release screws (arrows) and remove holders (1)

Courtesy of BMW OF NORTH AMERICA, INC.

Position holders (arrows) and tighten screws (1)

TIGHTENING TORQUES SPECIFICATION

Holder to support
M6x20	Tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
