Install the window channel strip of the inner rear door

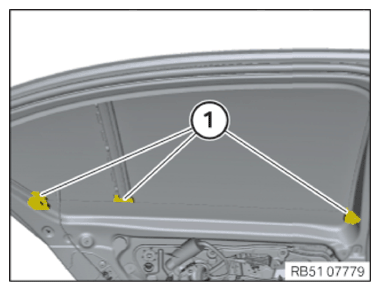

• Foam seals (1) must not be damaged or missing, replace if necessary

  Make sure the foam seal (1) is fitted correctly

  Courtesy of BMW OF NORTH AMERICA, INC.

• Align the window channel strip (1) and connect to door

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE COVER ON THE INSIDE OF THE WINDOW FRAME AT THE REAR .
• Refer to INSTALLING THE REAR DOOR TRIM PANEL .
