Installing the impact plate (M Sport steering wheel)

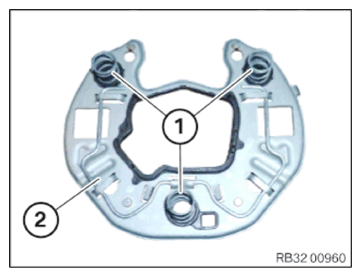

• Check the position of the springs (1) on the impact plate (2), correct if applicable

  Courtesy of BMW OF NORTH AMERICA, INC.

• Position the impact plate (3)
• Tighten down screws (2)

TIGHTENING TORQUE SPECIFICATION

Impact plate on steering wheel
Screw	tightening torque	6.5 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

• Connect the grounding cable (1)
