Remove rear bumper panel

NOTE: RISK OF DAMAGE
Mechanical effects
Paint damage

Mask those working areas at risk with yellow plastic adhesive tape
Remove and install heavy or bulky components with the aid of another person/other persons

NOTE: In order to guarantee the quality of the Driver Assistance functions in vehicles with concealed radar sensors, please read and comply with the following notes:

Preliminary work

Refer to REMOVING LUGGAGE COMPARTMENT FLOOR COVERING .
Refer to REMOVING THE LOADING EDGE TRIM .
Refer to PARTIALLY REMOVING LEFT AND RIGHT LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL .
Refer to REMOVING THE TRIM FROM THE LEFT AND RIGHT WATER CHANNELS .
Refer to REMOVING THE TAIL LIGHT ON THE LEFT AND RIGHT SIDE PANEL .

NOTE: Perform the steps on the left and right side

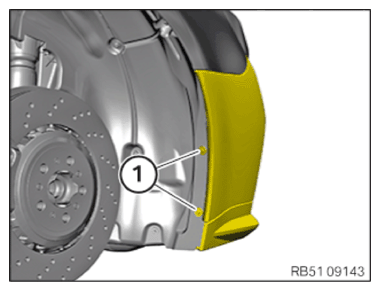

Loosen screws (1)

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Perform the steps on the left and right side

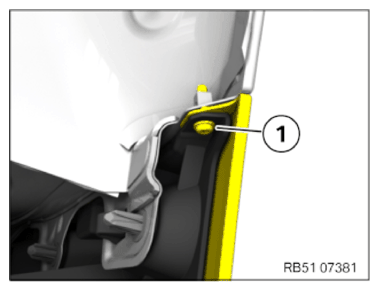

Loosen screw (1)

Courtesy of BMW OF NORTH AMERICA, INC.

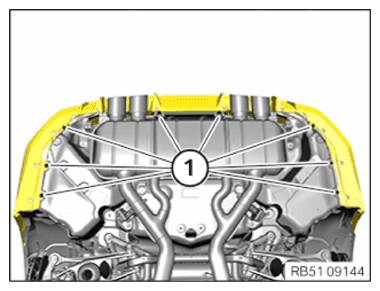

Loosen screws (1)

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Perform the steps on the left and right side

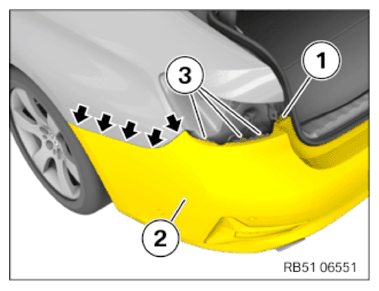

Loosen screw (1)
Loosen the bumper cover (2) from the detents (3) in area of rear light housing with a suitable tool
Release the bumper cover (2) at side from the remaining detents (arrows)

Courtesy of BMW OF NORTH AMERICA, INC.

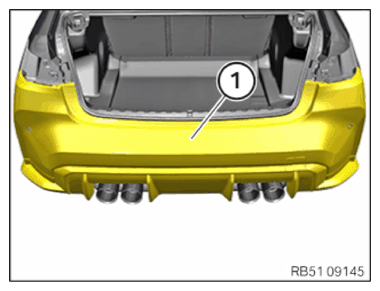

Remove the bumper cover (1) by moving it straight back with the help of a support person
Unlock all plug connections and disconnect
Remove the bumper panel (1)

Courtesy of BMW OF NORTH AMERICA, INC.
