Installing side trim panel in footwell on right A-pillar

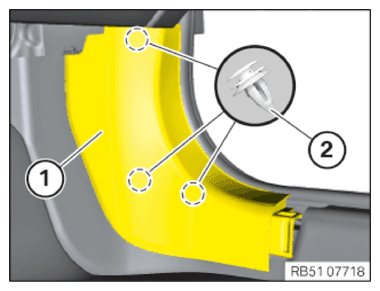

- Check if clips (2) are present and check them for damage
Damaged or missing clips (2) must be replaced
- Position the side trim panel (1) correctly and clip in at the clips (2)
- Make sure that the side trim panel (1) is correctly fitted against edge protection
Follow-up work
- Refer to INSTALLING THE RIGHT DOOR SILL COVER STRIP .
- Refer to INSTALLING RIGHT FOOTWELL TRIM .
