Installing the windshield rubber frame

NOTE: Perform the steps on the left and right side

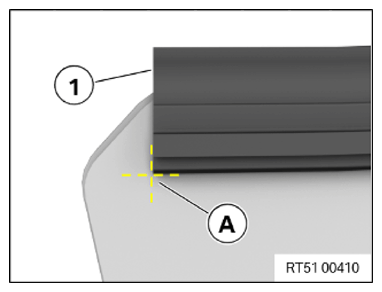

Note mark (A) for windshield rubber frame (1)

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details

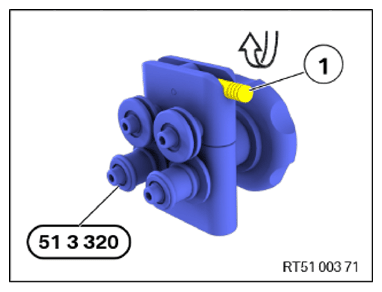

Move lever (1) in the arrow direction and open with the special tool 0 496 529 (51 3 320)

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details

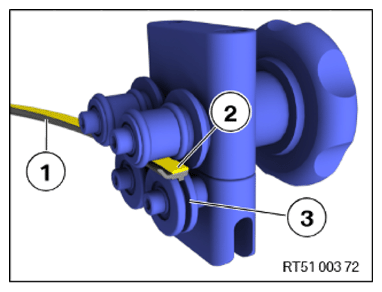

Detach protective film (2) in stages from adhesive tape
Insert cover (1) into guides (3)

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details

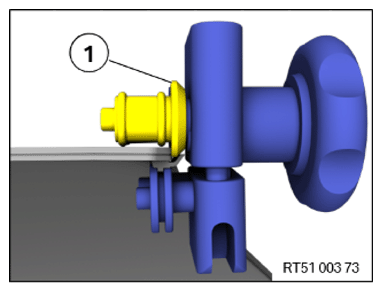

Place special tool with pressure rollers (1) on the window edge
Align cover at outer edge of windshield
Fit the cover and visually check for perfect position

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details

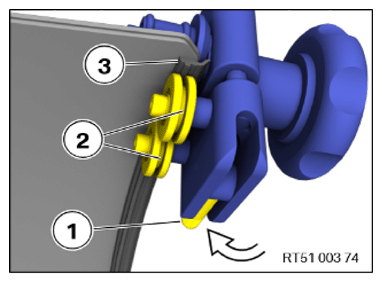

Move lever (1) in the arrow direction to close the special tool
Ensure that cover (3) is positioned correctly in guide pulleys (2)

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details

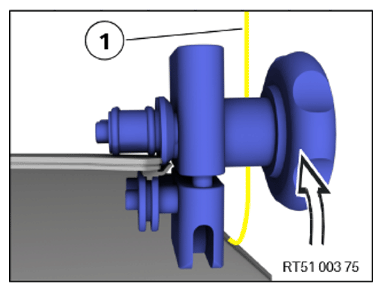

Continue to detach protective film (1) in stages from adhesive tape
Use the handwheel to draw special tool in arrow direction over the entire upper edge of the window glass
