Removing the rear model inscription
NOTE:
RISK OF DAMAGE
Careless handling of tools and sharp-edged components. Scratches, surface damage
Careless handling of tools and sharp-edged components. Scratches, surface damage
- Protect working area
- Handle tools and components carefully
- Mask off the working area with adhesive tape

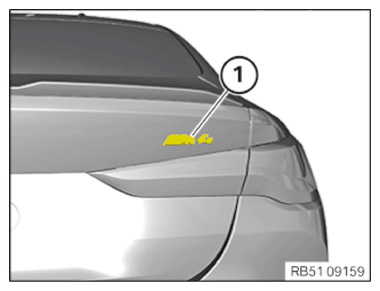

- Heat the rear model inscription (1) carefully with a hot air blower and release it from the tailgate with the special tool 0 496 571 (00 9 327).TECHNICAL DATA SPECIFICATION
Heating using hot air blower Surface temperature 40°C... 50°C - Remove adhesive residue from the trunk lid
